High Carbon Cast Steel Shot Abrasive Media for shot Blasting & Surface Cleaning

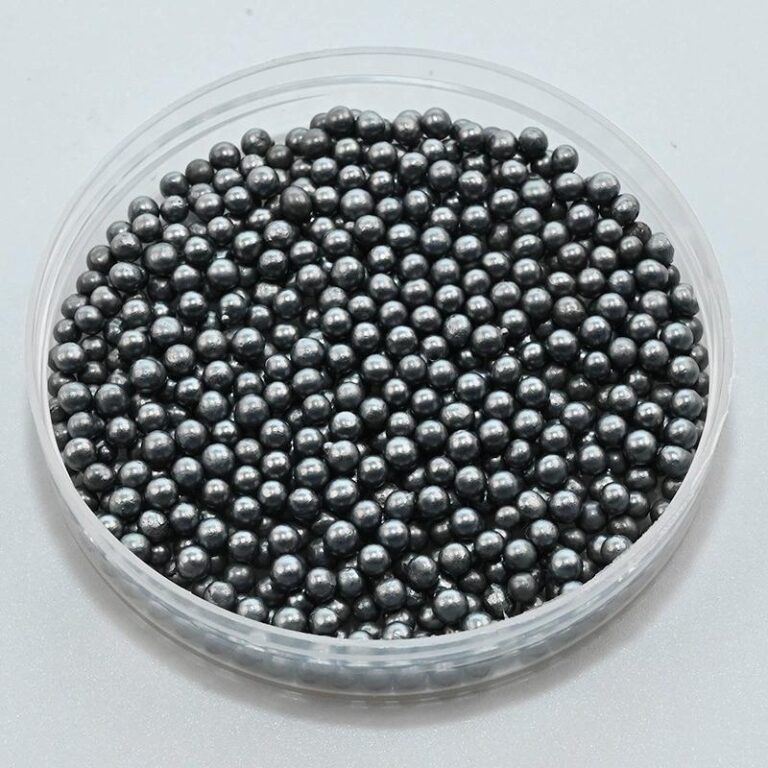

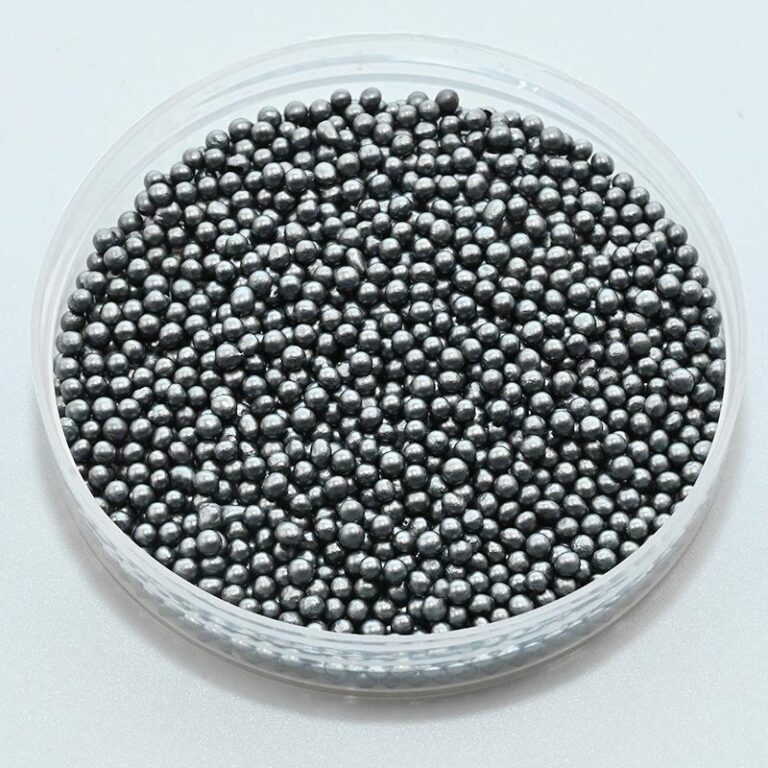

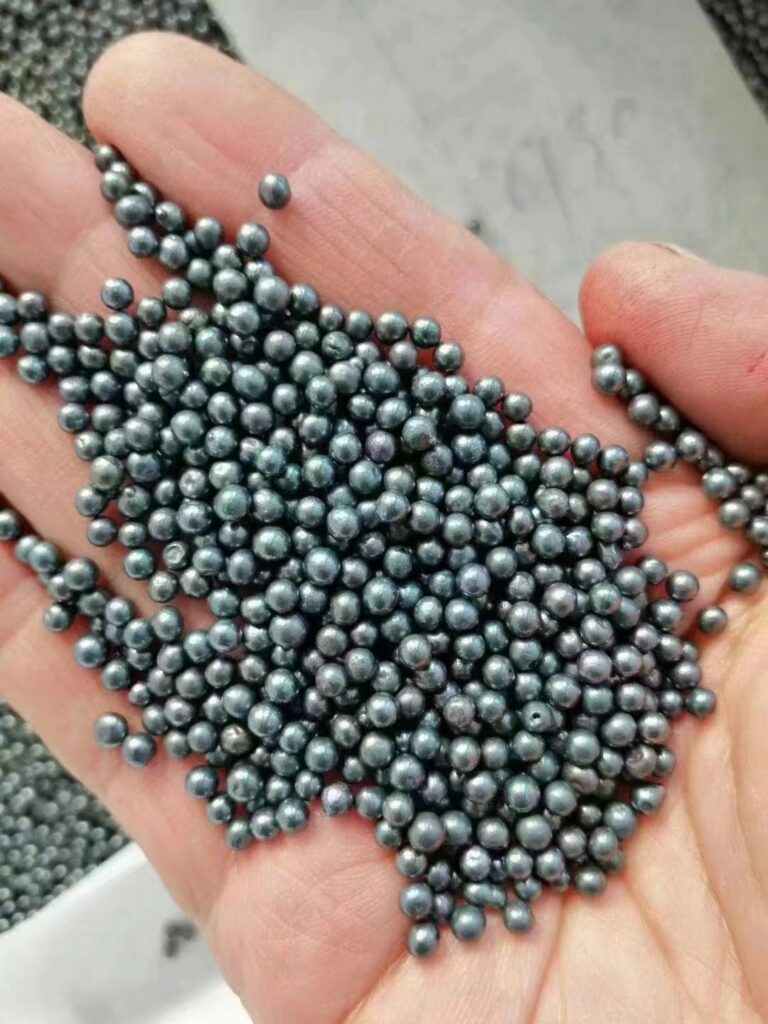

Description: Atomized High Carbon Cast Steel Shot is spherical metallic blasting media, manufactured by melting steel, atomizing molten metal into spherical droplets, followed by quenching and tempering heat treatment. It features high density, uniform spherical shape, controllable hardness, excellent impact toughness and long recyclable service life. Widely used for shot blasting cleaning, rust removal, descaling and shot peening strengthening. Available size range: 0.2 mm ~ 3.0 mm (SAE standard S70~S930). To know more abrasives.
Note: Ferrous material, prone to rust under humid environment. Not suitable for wet sand mill grinding. Compliant with GB/T18838.3 & SAE J827. Custom hardness and sizes available.
- Package:
- 1000 kg, Super Bag or Sack
- 25 kg (55 lbs), Paper Bag or Woven Polypropylene Bag

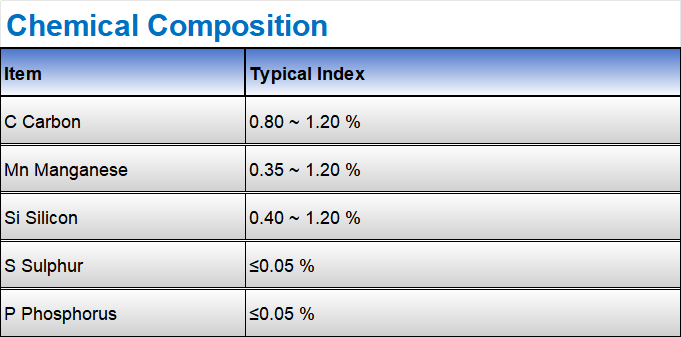

Chemical Composition
| Item | Typical Index |
|---|---|
| C Carbon | 0.80 ~ 1.20 % |
| Mn Manganese | 0.35 ~ 1.20 % |
| Si Silicon | 0.40 ~ 1.20 % |
| S Sulphur | ≤0.05 % |
| P Phosphorus | ≤0.05 % |

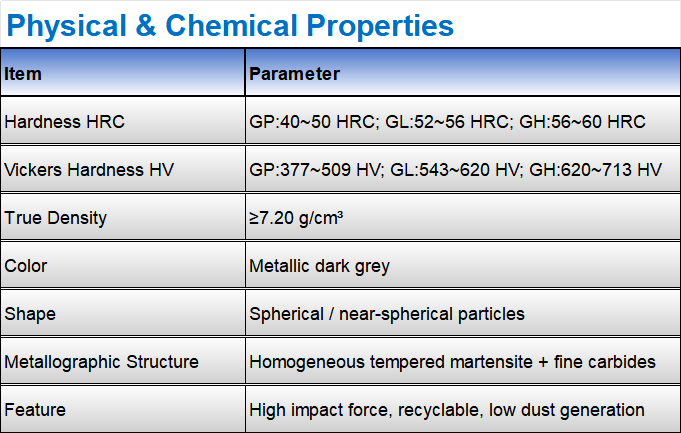

Physical & Chemical Properties
| Item | Parameter |
|---|---|
| Hardness HRC | GP:40~50 HRC; GL:52~56 HRC; GH:56~60 HRC |
| Vickers Hardness HV | GP:377~509 HV; GL:543~620 HV; GH:620~713 HV |
| True Density | ≥7.20 g/cm³ |
| Color | Metallic dark grey |
| Shape | Spherical / near-spherical particles |
| Metallographic Structure | Homogeneous tempered martensite + fine carbides |
| Feature | High impact force, recyclable, low dust generation |

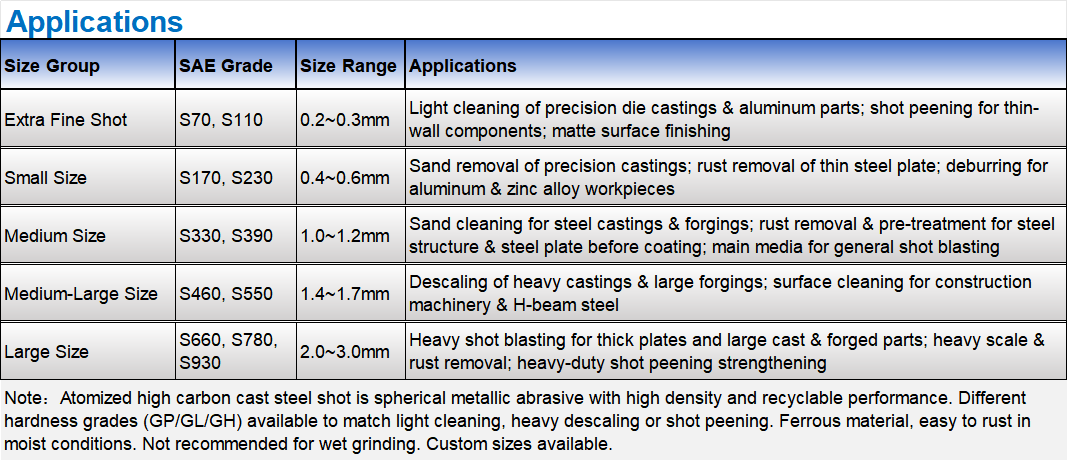

Applications

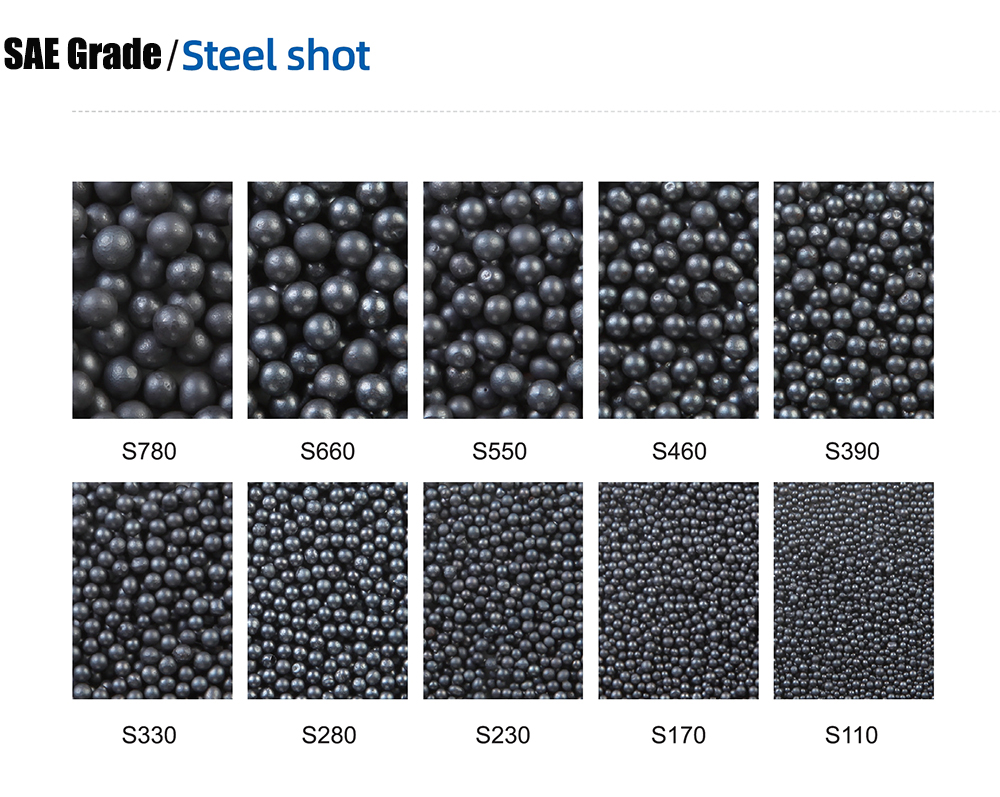

| Size Group | SAE Grade | Size Range | Applications |
|---|---|---|---|
| Extra Fine Shot | S70, S110 | 0.2~0.3mm | Light cleaning of precision die castings & aluminum parts; shot peening for thin-wall components; matte surface finishing |
| Small Size | S170, S230 | 0.4~0.6mm | Sand removal of precision castings; rust removal of thin steel plate; deburring for aluminum & zinc alloy workpieces |
| Medium Size | S330, S390 | 1.0~1.2mm | Sand cleaning for steel castings & forgings; rust removal & pre-treatment for steel structure & steel plate before coating; main media for general shot blasting |
| Medium-Large Size | S460, S550 | 1.4~1.7mm | Descaling of heavy castings & large forgings; surface cleaning for construction machinery & H-beam steel |
| Large Size | S660, S780, S930 | 2.0~3.0mm | Heavy shot blasting for thick plates and large cast & forged parts; heavy scale & rust removal; heavy-duty shot peening strengthening |

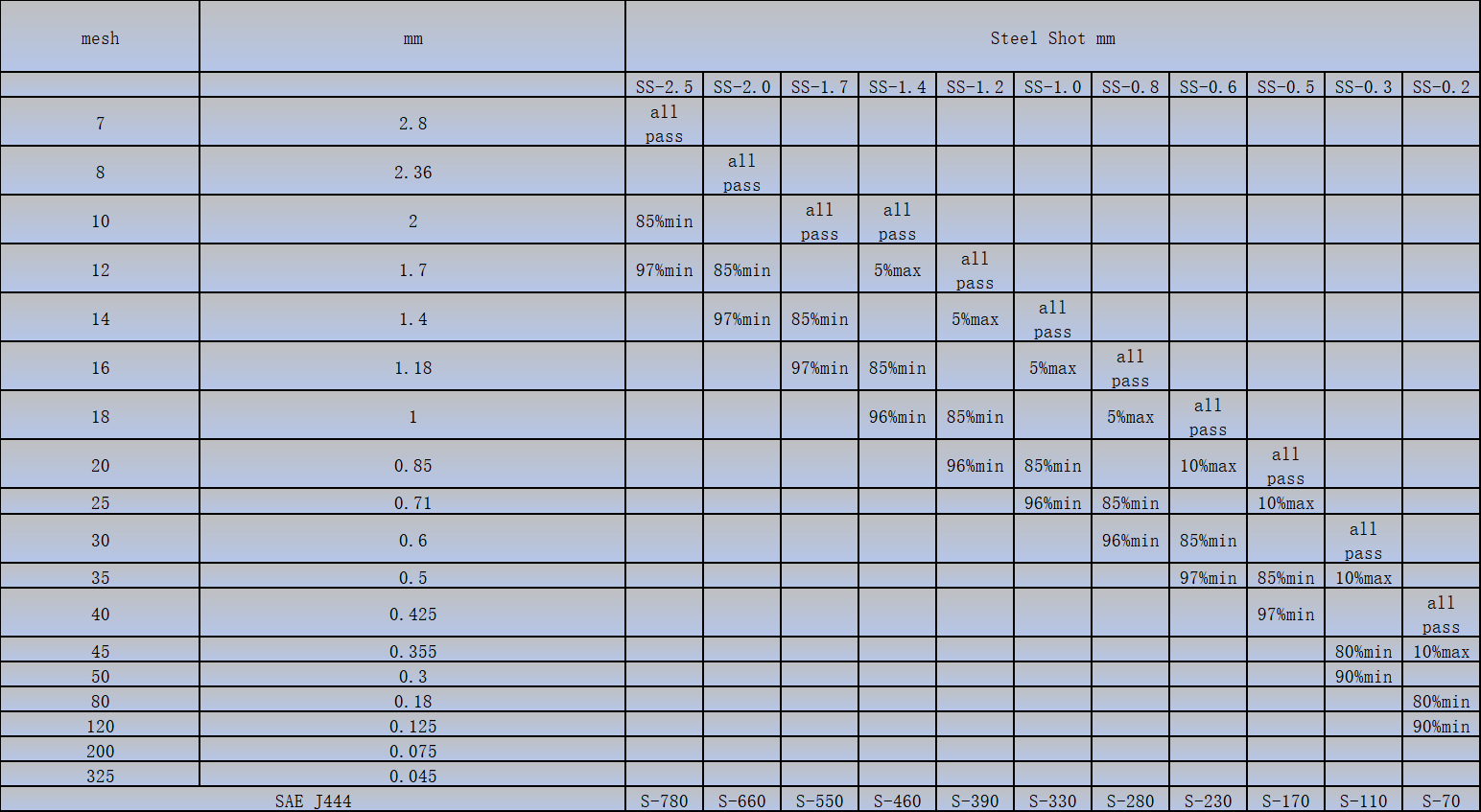

Steel Shot Sieve Analysis
| mesh | mm | Steel Shot mm | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SS-2.5 | SS-2.0 | SS-1.7 | SS-1.4 | SS-1.2 | SS-1.0 | SS-0.8 | SS-0.6 | SS-0.5 | SS-0.3 | SS-0.2 | ||
| 7 | 2.8 | all pass | ||||||||||
| 8 | 2.36 | all pass | ||||||||||
| 10 | 2 | 85%min | all pass | all pass | ||||||||
| 12 | 1.7 | 97%min | 85%min | 5%max | all pass | |||||||
| 14 | 1.4 | 97%min | 85%min | 5%max | all pass | |||||||
| 16 | 1.18 | 97%min | 85%min | 5%max | all pass | |||||||
| 18 | 1 | 96%min | 85%min | 5%max | all pass | |||||||
| 20 | 0.85 | 96%min | 85%min | 10%max | all pass | |||||||
| 25 | 0.71 | 96%min | 85%min | 10%max | all pass | |||||||
| 30 | 0.6 | 96%min | 85%min | 10%max | ||||||||
| 35 | 0.5 | 97%min | 85%min | 10%max | ||||||||
| 40 | 0.425 | 97%min | all pass | |||||||||
| 45 | 0.355 | 80%min | 10%max | |||||||||
| 50 | 0.3 | 90%min | ||||||||||
| 80 | 0.18 | 80%min | ||||||||||
| 120 | 0.125 | 90%min | ||||||||||
| 200 | 0.075 | |||||||||||
| 325 | 0.045 | |||||||||||
| SAE J444 | S-780 | S-660 | S-550 | S-460 | S-390 | S-330 | S-280 | S-230 | S-170 | S-110 | S-70 | |
Our cast steel shot is specified to SAE J827, which fixes chemistry and hardness for high-carbon cast-steel shot and links each S-size to its nominal diameter, so a S230 order means the same thing here as it does on your drawing.
