High Carbon Steel Grit | Abrasive Media for Sand Blasting & Surface Cleaning

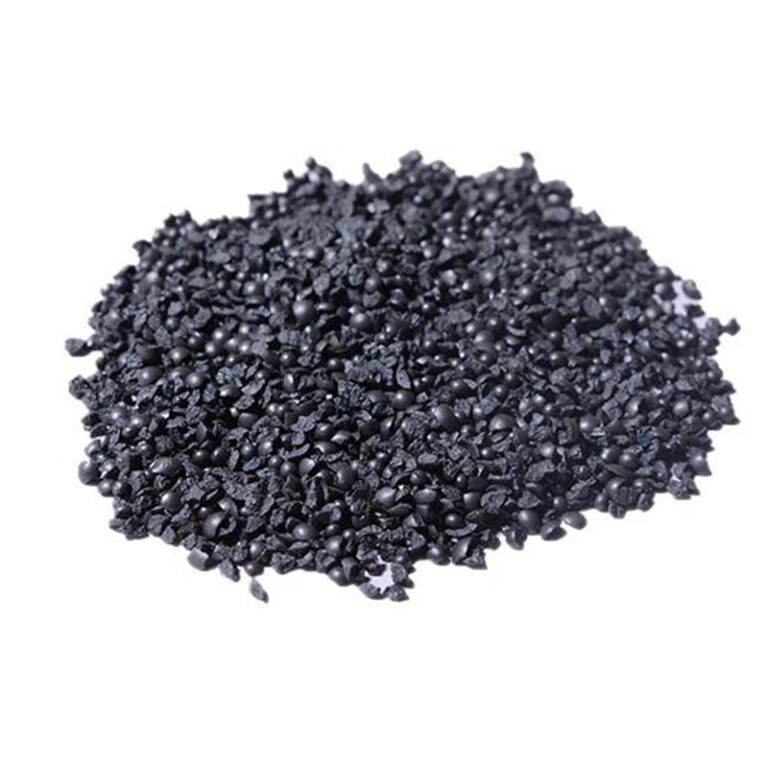

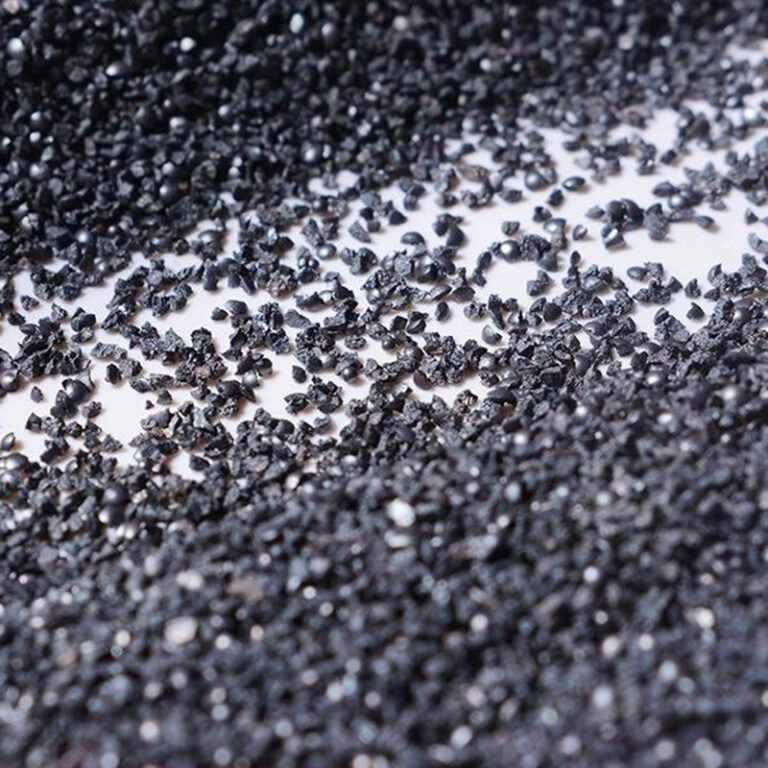

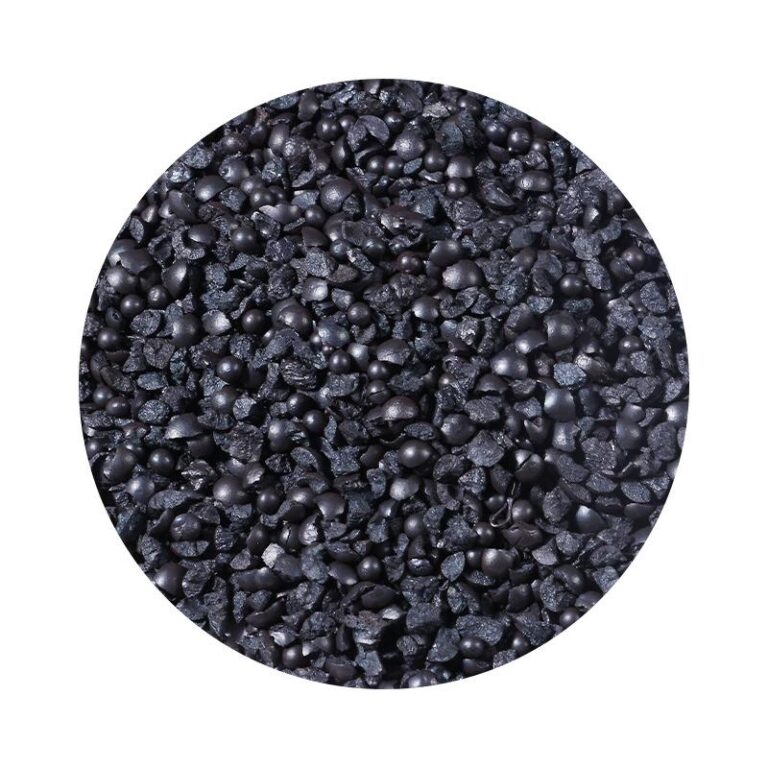

Description: High Carbon Steel Grit is angular metallic blasting abrasive, manufactured by crushing heat-treated high carbon cast steel shot, followed by tempering and grading screening. It features sharp angular edges and strong cutting capacity, which can create uniform anchor profile on metal substrate to improve paint/coating adhesion. Three hardness grades available: GP (general purpose), GL (medium hard), GH (high hard). Widely used for heavy rust removal, scale removal, old coating stripping and surface texturing of steel structures, steel plates, castings & forgings. Available size range: 0.2 mm ~ 2.0 mm (SAE G series G10~G120). To know more abrasives.
Note: Ferrous material, prone to rust under humid environment. Not suitable for wet sand mill grinding. Compliant with SAE J1993, ISO11124-3 & GB/T18838.3. Custom hardness and sizes available.
-
-
Package:
- 1000 kg, Super Bag or Sack
- 25 kg (55 lbs), Paper Bag or Woven Polypropylene Bag

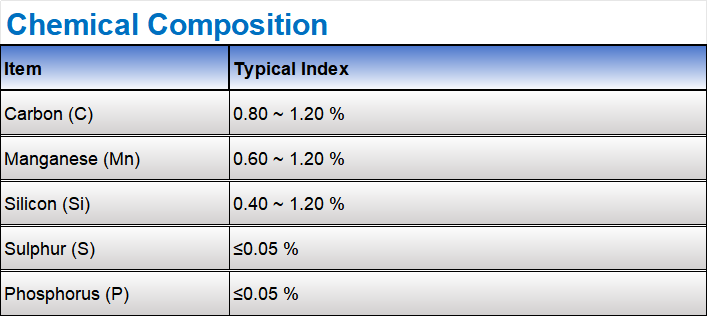

Chemical Composition
| Item | Typical Index |
|---|---|
| Carbon (C) | 0.80 ~ 1.20 % |
| Manganese (Mn) | 0.60 ~ 1.20 % |
| Silicon (Si) | 0.40 ~ 1.20 % |
| Sulphur (S) | ≤0.05 % |
| Phosphorus (P) | ≤0.05 % |

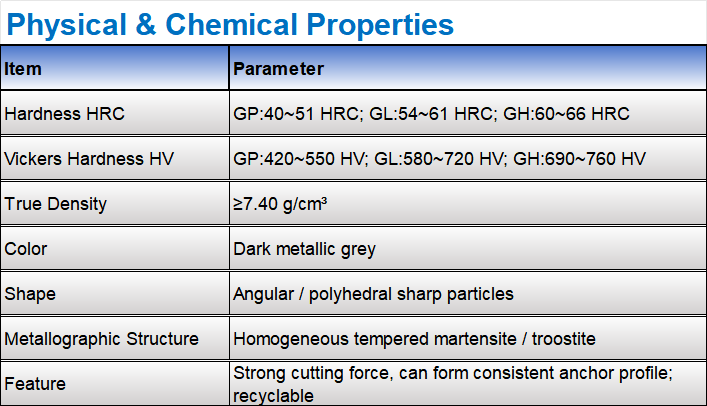

Physical & Chemical Properties
| Item | Parameter |
|---|---|
| Hardness HRC | GP:40~51 HRC; GL:54~61 HRC; GH:60~66 HRC |
| Vickers Hardness HV | GP:420~550 HV; GL:580~720 HV; GH:690~760 HV |
| True Density | ≥7.40 g/cm³ |
| Color | Dark metallic grey |
| Shape | Angular / polyhedral sharp particles |
| Metallographic Structure | Homogeneous tempered martensite / troostite |
| Feature | Strong cutting force, can form consistent anchor profile; recyclable |

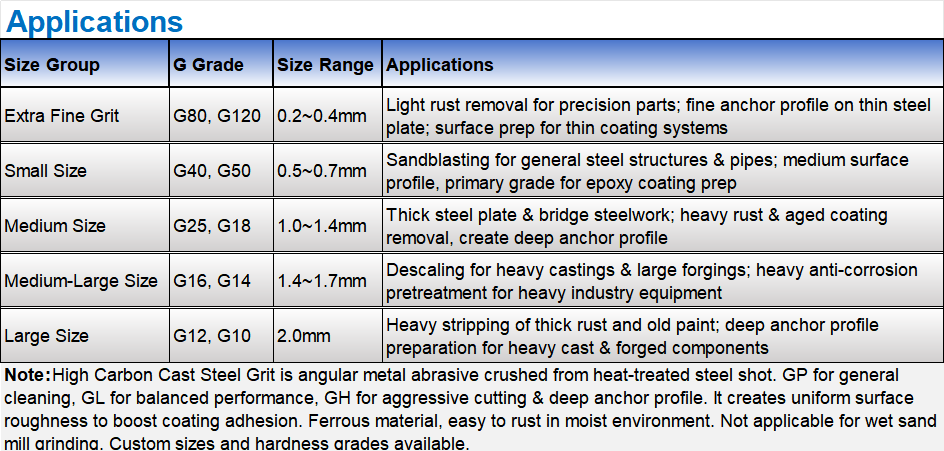

Applications

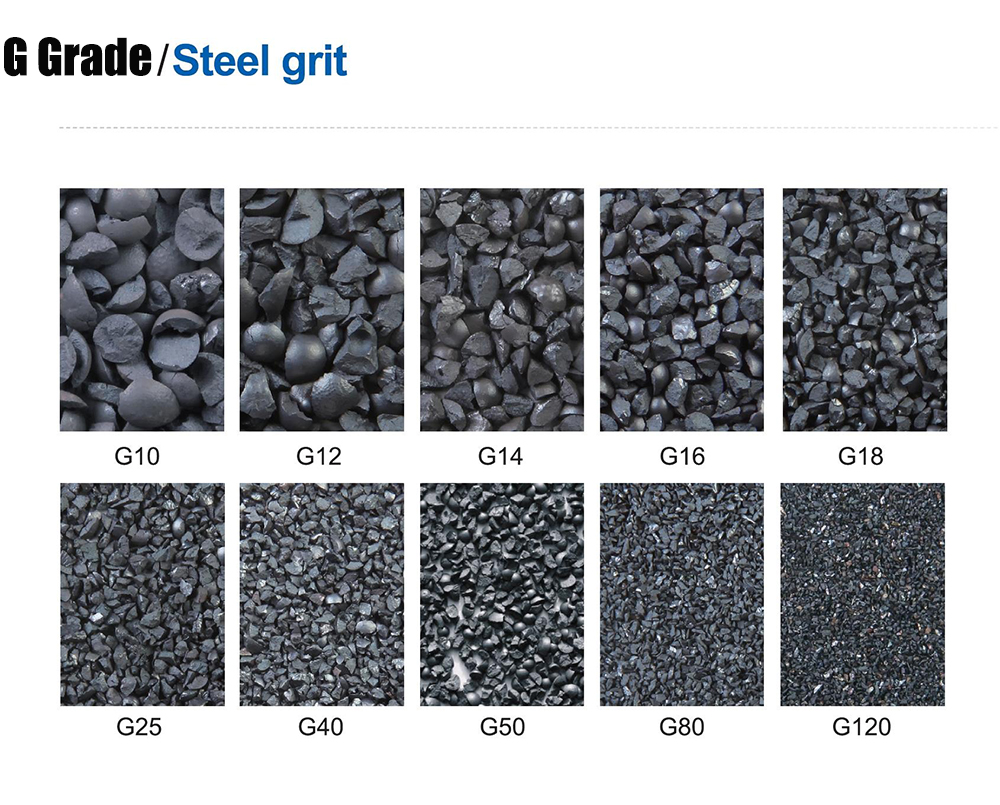

| Size Group | G Grade | Size Range | Applications |
|---|---|---|---|
| Extra Fine Grit | G80, G120 | 0.2~0.4mm | Light rust removal for precision parts; fine anchor profile on thin steel plate; surface prep for thin coating systems |
| Small Size | G40, G50 | 0.5~0.7mm | Sandblasting for general steel structures & pipes; medium surface profile, primary grade for epoxy coating prep |
| Medium Size | G25, G18 | 1.0~1.4mm | Thick steel plate & bridge steelwork: heavy rust & aged coating removal, create deep anchor profile |
| Medium-Large Size | G16, G14 | 1.4~1.7mm | Descaling for heavy castings & large forgings; heavy anti-corrosion pretreatment for heavy industry equipment |
| Large Size | G12, G10 | 2.0mm | Heavy stripping of thick rust and old paint; deep anchor profile preparation for heavy cast & forged components |

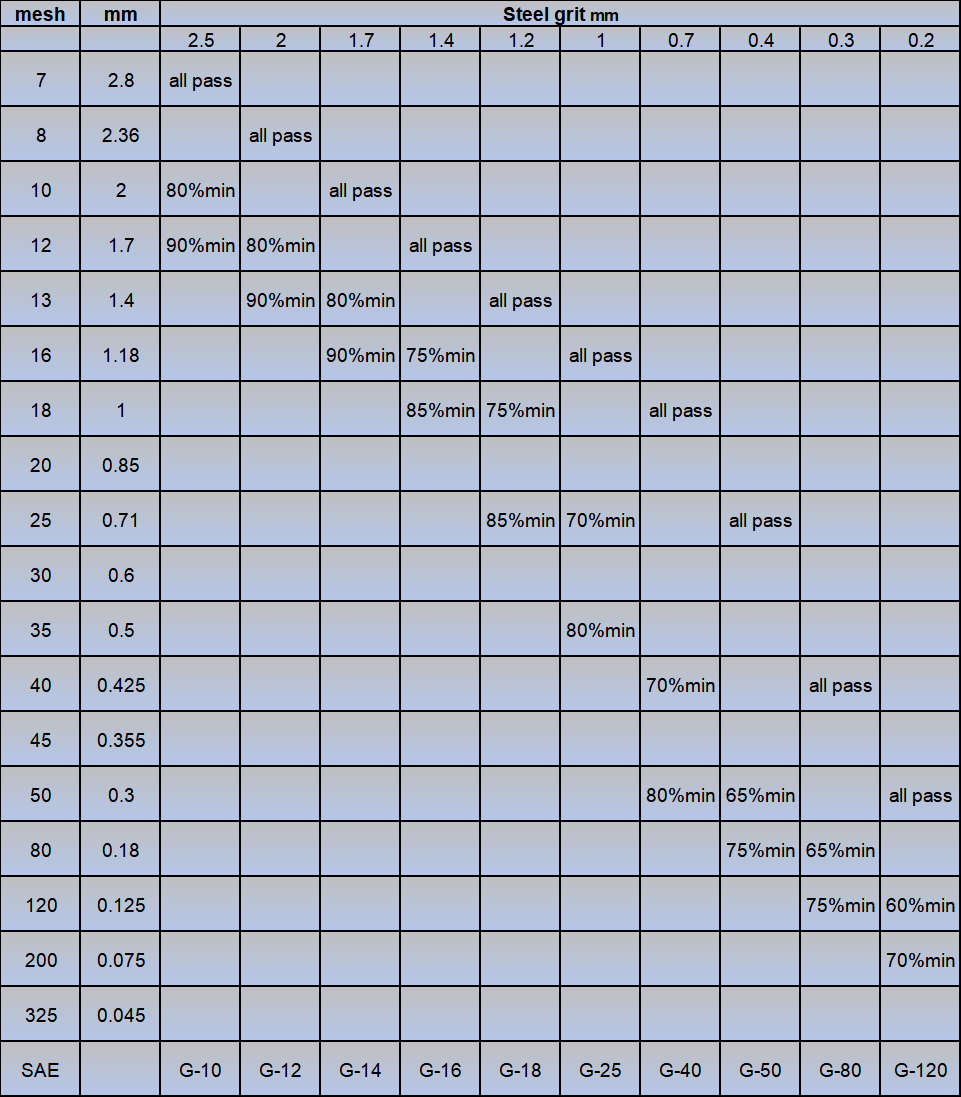

Steel Grit Sieve Analysis
| mesh | mm | Steel grit mm | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2.5 | 2 | 1.7 | 1.4 | 1.2 | 1 | 0.7 | 0.4 | 0.3 | 0.2 | ||
| 7 | 2.8 | all pass | |||||||||
| 8 | 2.36 | all pass | |||||||||
| 10 | 2 | 80%min | all pass | ||||||||
| 12 | 1.7 | 90%min | 80%min | all pass | |||||||
| 13 | 1.4 | 90%min | 80%min | all pass | |||||||
| 16 | 1.18 | 90%min | 75%min | all pass | |||||||
| 18 | 1 | 85%min | 75%min | all pass | |||||||
| 20 | 0.85 | ||||||||||
| 25 | 0.71 | 85%min | 70%min | all pass | |||||||
| 30 | 0.6 | ||||||||||
| 35 | 0.5 | 80%min | |||||||||
| 40 | 0.425 | 70%min | all pass | ||||||||
| 45 | 0.355 | ||||||||||
| 50 | 0.3 | 80%min | 65%min | all pass | |||||||
| 80 | 0.18 | 75%min | 65%min | ||||||||
| 120 | 0.125 | 75%min | 60%min | ||||||||
| 200 | 0.075 | 70%min | |||||||||
| 325 | 0.045 | ||||||||||
| SAE | G-10 | G-12 | G-14 | G-16 | G-18 | G-25 | G-40 | G-50 | G-80 | G-120 | |
Cast steel grit is designated by sieve number under SAE J444, where shot sizes carry an S prefix and grit sizes a G prefix, both tied to the nominal test sieve opening; J444 itself references ASTM E11 sieves for that gradin
