High Refractive Index Glass Beads & Microspheres for road marking

High Refractive Index Glass beads & Microspheres enhance retroreflective performance, especially effective in wet and rainy conditions.

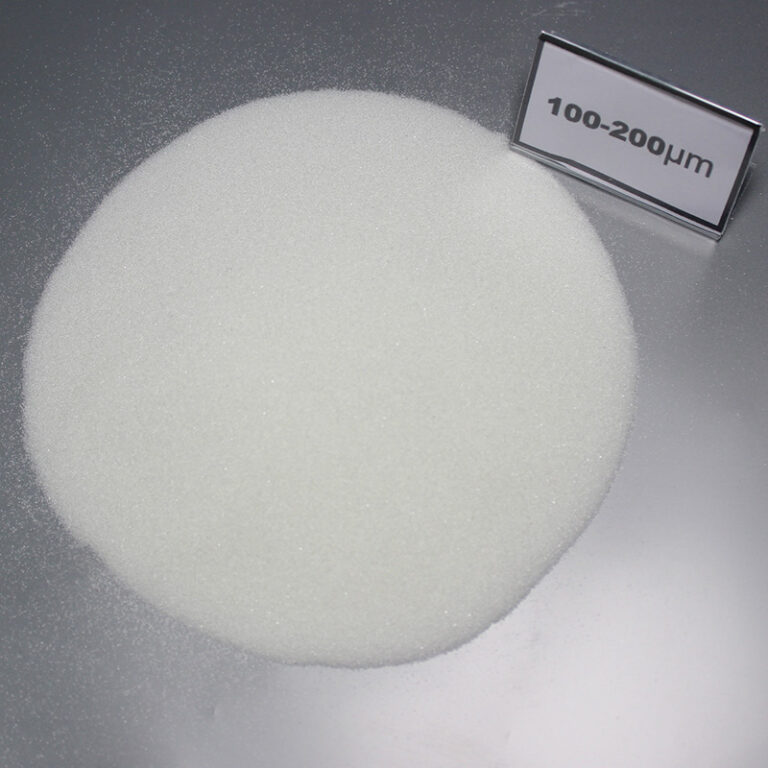

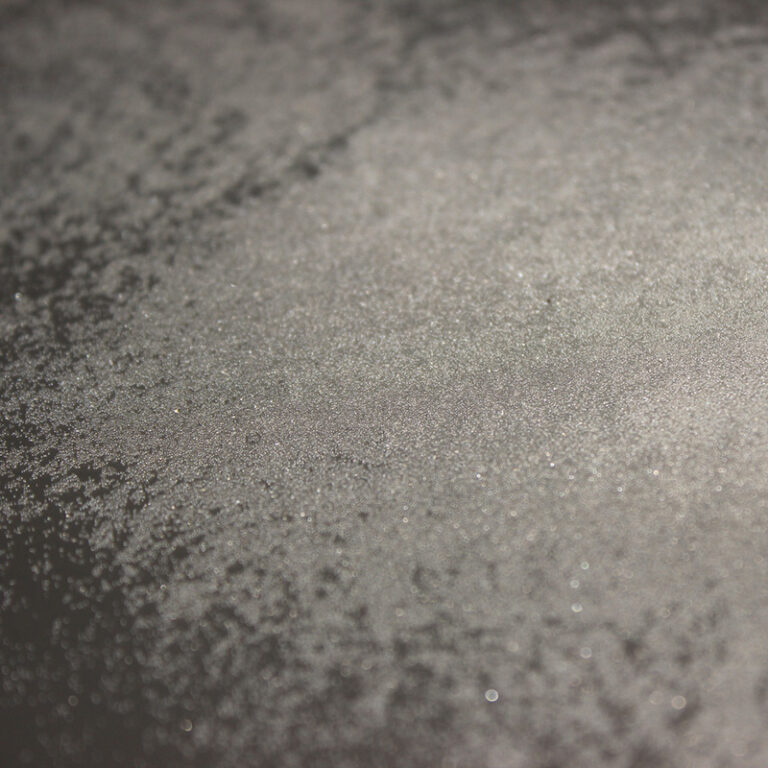

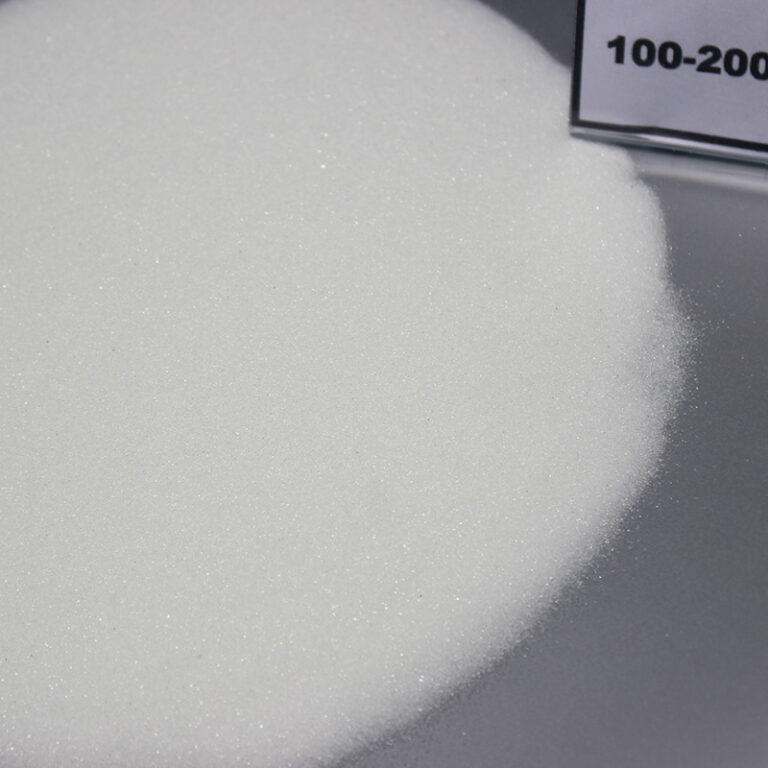

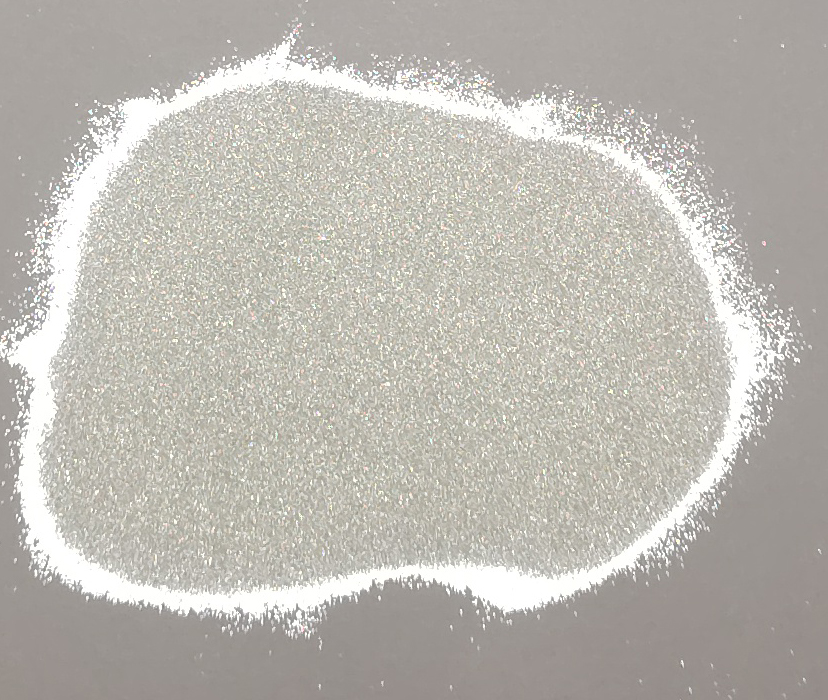

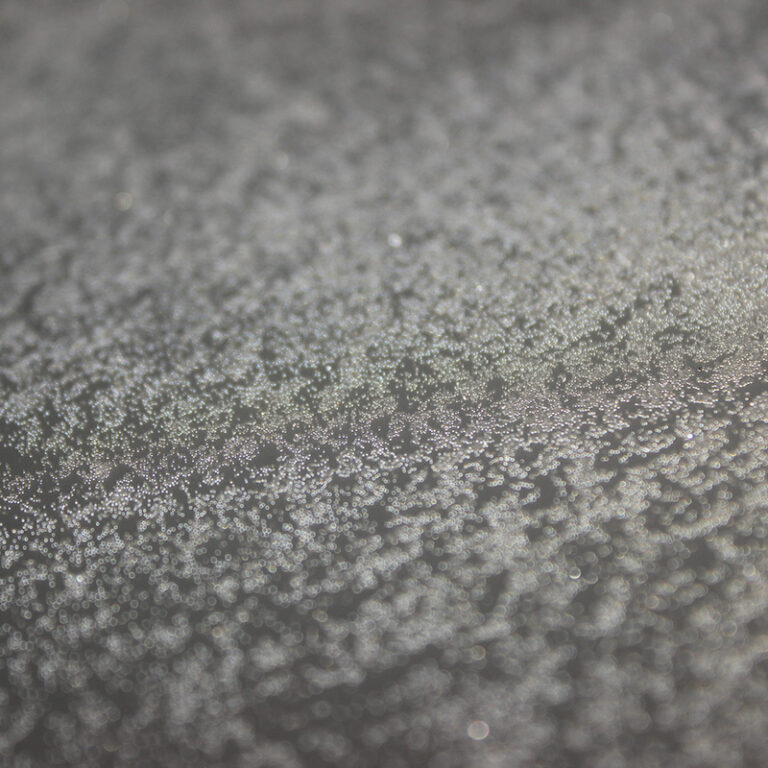

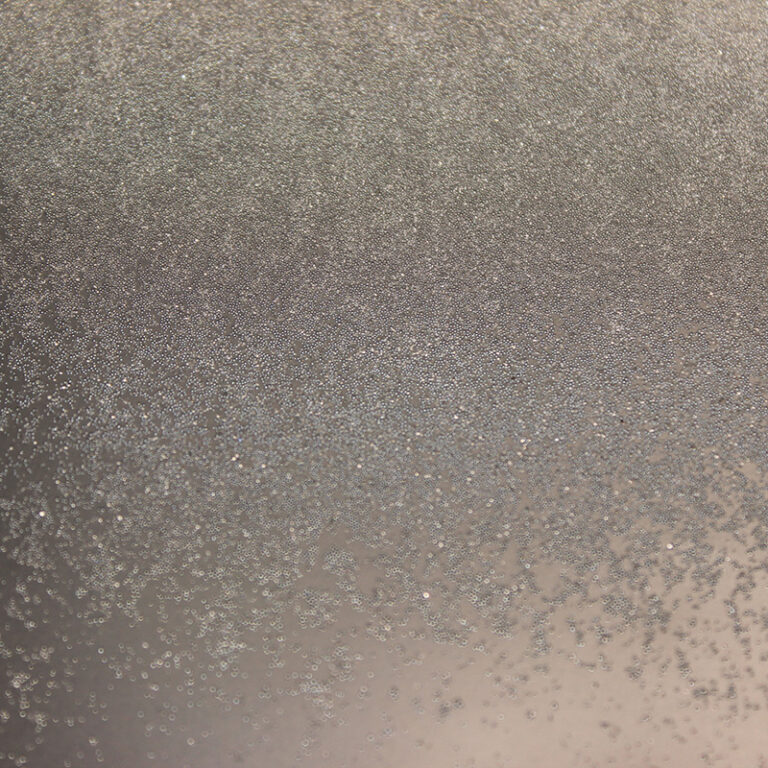

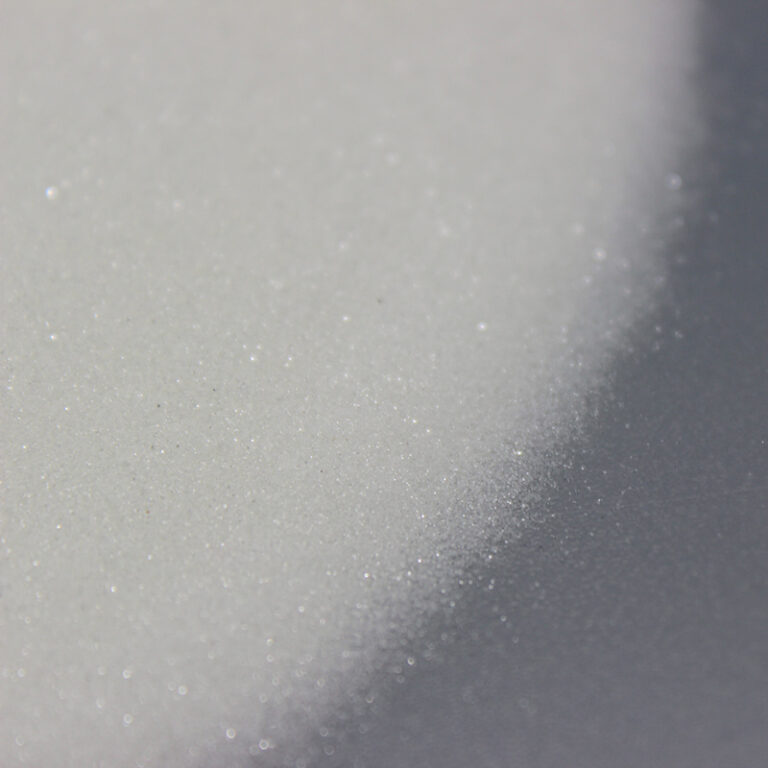

High Refractive Index Glass Beads & Microspheres

Description: Premium High Refractive Index Glass beads & microspheres with enhanced reflective performance, especially effective in wet and rainy conditions. Suitable for highways, tunnels, bridges and heavy-traffic zones where high visibility is required.
Model: GB-HI-165
Execution Standard: Exceed various international standards, ensuring high quality and performance
Key Parameters:
  • Roundness (Sphericity): ≥ 90%
  • Refractive Index: 1.65–1.90
  • Hardness (Mohs): 6–7
  • Particle Size: 40–1000 μm (Size customizable)
  • Specific Gravity: 2.45–2.55 g/cm³
  • Moisture Content: ≤ 0.08%
  • Impurities: ≤ 0.1%
  •
    Note:High refractive index glass microspheres are mainly made of silica and boron oxide as the basic glass structure.

    To raise the refractive index, high-refraction metal oxides are added in large amounts:

    • Titanium Dioxide ()
    • Barium Oxide ()
    • Zirconium Oxide ()


    The higher the content of these three components, the higher the refractive index.



    However, excessive addition will reduce transparency and increase the difficulty of keeping perfect roundness.


  • Package:
  • 1000 kg, Super Bag or Sack
  • 25 kg (55 lbs), Paper Bag or Woven Polypropylene Bag
Grade Range & Applications (Fine beads)
Grade (μm)Core Applications
40–70μm
  • Fine sandblasting & polishing of stainless steel, aluminium, medical devices and moulds — matte finish and light oxide removal
  • Coating / ink light reflection and resin filling
  • Thin-film road marking premix
75–150μm
  • General precision sandblasting — deburring and oxide removal for aluminium alloys, castings and 3C products
  • Shot peening for stress relief
  • Mixed reflective beads for hot-melt and two-component road marking premix
  • Reflective embellishment for ink and craft coatings
150–225μm
  • Medium-intensity shot peening for automotive parts, springs and gears — introduces surface compressive stress, improves fatigue resistance
  • Drop-on reflective beads for road marking surface
  • Filler aggregate for epoxy flooring and artificial stone
Grade Range & Applications (Coarse beads)
Grade (μm)Core Applications
225–450μm
  • Heavy-duty shot peening for aerospace & construction machinery parts: casting sand removal and heavy oxide-scale cleaning
  • Coarse drop-on beads for hot-melt, thick and rainy-night markings, runways; filter media and terrazzo aggregate
400–600μm
  • Heavy-load shot blasting for large castings and forgings
  • Drop-on beads for high-visibility rainy-night and thick hot-melt markings and reflective sign sheets
  • Pervious flooring, aquarium landscaping aggregate and filter media
600–800μm
  • Heavy-duty sandblasting cleaning for large steel structures
  • Drop-on beads for rainy-night markings, airport runways and port markings
  • Landscape flooring, filter media and craft aggregate
800–1000μm
  • Sandblasting for extra-large workpieces and stripping heavy corrosion
  • Coarse drop-on beads for high-grade rainy-night markings and runways
  • Pervious filter media and decorative aggregate
1000–1200μm · 1–1.2 mm
  • Heavy-duty sandblasting for castings
  • Premium rainy-night reflective markings and special airport & port markings
  • Water-treatment filter media, flooring and landscape aggregate

Our premix beads meet the grading and roundness requirements of the AASHTO M 247 specification, with a refractive index of 1.50 or higher.
