Low Carbon Cast Steel Shot Blasting Abrasive for Metal Surface Treatment

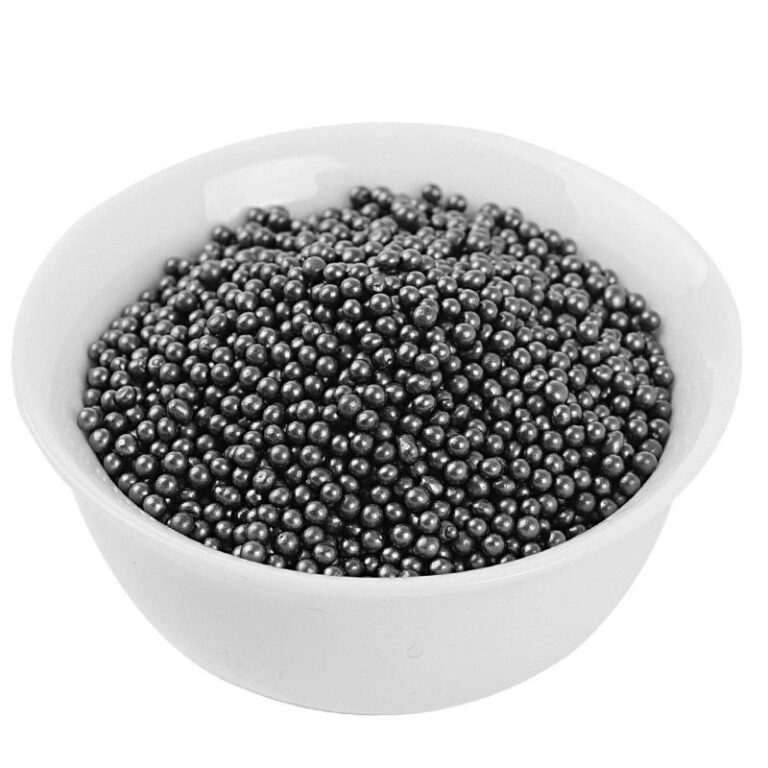

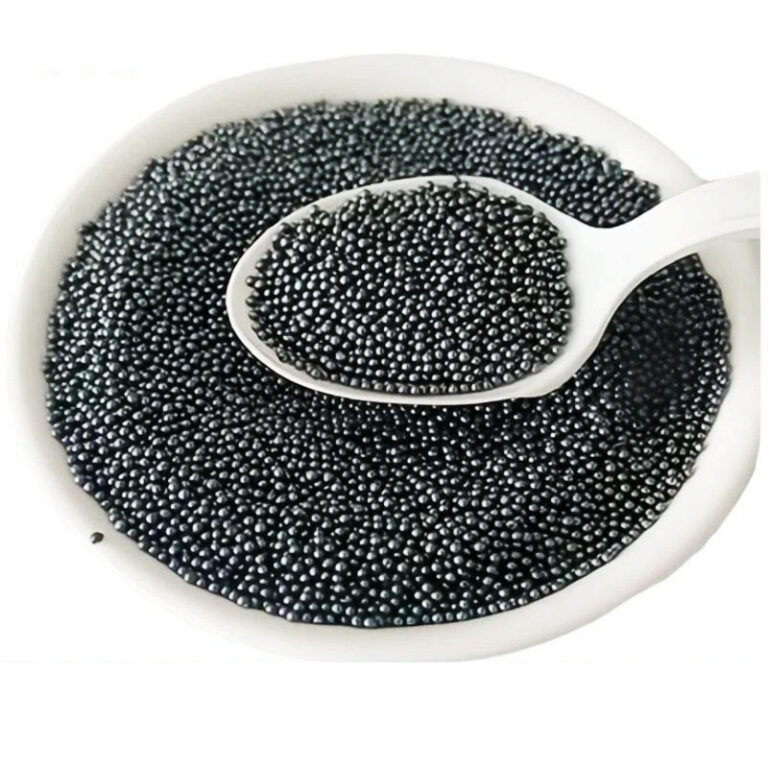

Description: Low Carbon Cast Steel Shot is spherical metallic shot blasting media produced by water atomization process. With low carbon content, it features ultra-high toughness, low breakage rate and large plastic deformation capacity. It is specially designed for shot peening strengthening to improve the fatigue resistance of metal components. Compared with high carbon cast steel shot, it has lower hardness and superior toughness, but weaker cutting & descaling performance. Available size range: 0.2 mm ~ 3.0 mm (SAE standard S70~S930). To know more abrasives.
Note: Ferrous material, prone to rust under humid environment. Not suitable for heavy rust/scale removal or wet sand mill grinding. Compliant with GB/T18838.3 & SAE J827. Custom sizes available.
- Package:
- 1000 kg, Super Bag or Sack
- 25 kg (55 lbs), Paper Bag or Woven Polypropylene Bag

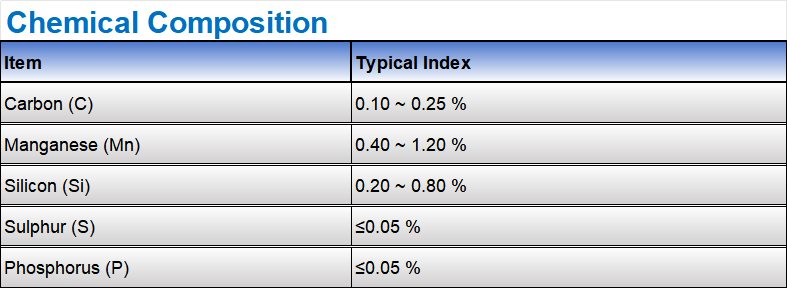

Chemical Composition
| Item | Typical Index |
|---|---|
| Carbon (C) | 0.10 ~ 0.25 % |
| Manganese (Mn) | 0.40 ~ 1.20 % |
| Silicon (Si) | 0.20 ~ 0.80 % |
| Sulphur (S) | ≤0.05 % |
| Phosphorus (P) | ≤0.05 % |

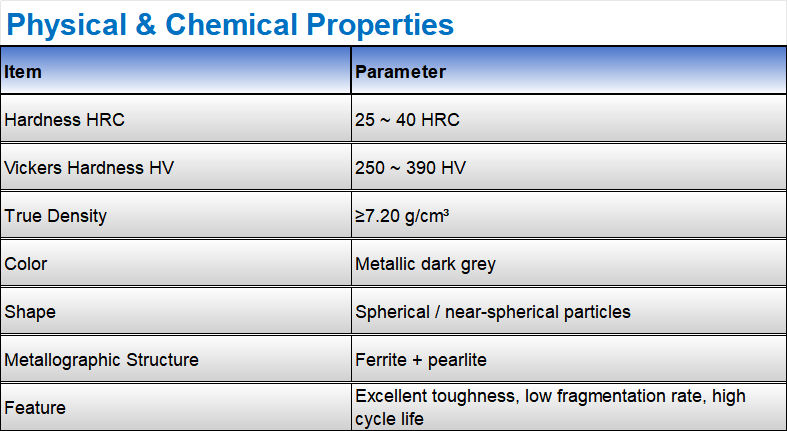

Physical & Chemical Properties
| Item | Parameter |
|---|---|
| Hardness HRC | 25 ~ 40 HRC |
| Vickers Hardness HV | 250 ~ 390 HV |
| True Density | ≥7.20 g/cm³ |
| Color | Metallic dark grey |
| Shape | Spherical / near-spherical particles |
| Metallographic Structure | Ferrite + pearlite |
| Feature | Excellent toughness, low fragmentation rate, high cycle life |

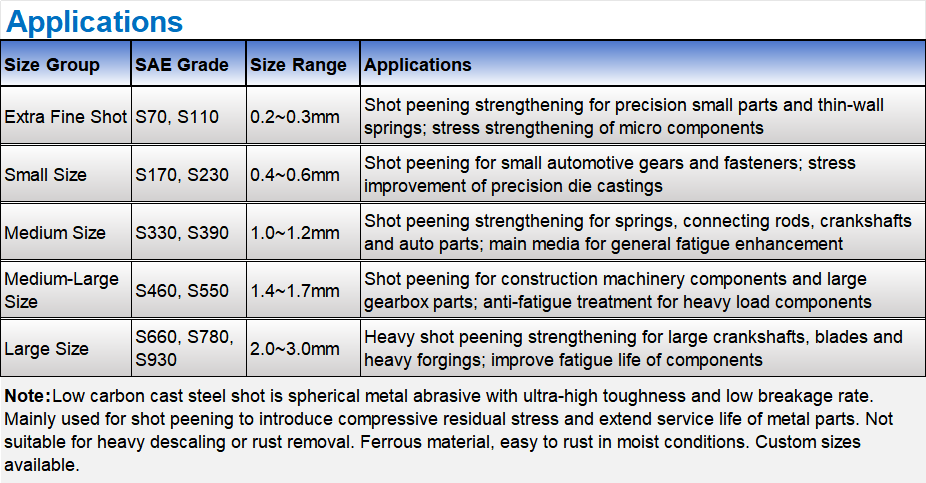

Applications
| Size Group | SAE Grade | Size Range | Applications |
|---|---|---|---|
| Extra Fine Shot | S70, S110 | 0.2~0.3mm | Shot peening strengthening for precision small parts and thin-wall springs; stress strengthening of micro components |
| Small Size | S170, S230 | 0.4~0.6mm | Shot peening for small automotive gears and fasteners; stress improvement of precision die castings |
| Medium Size | S330, S390 | 1.0~1.2mm | Shot peening strengthening for springs, connecting rods, crankshafts and auto parts; main media for general fatigue enhancement |
| Medium-Large Size | S460, S550 | 1.4~1.7mm | Shot peening for construction machinery components and large gearbox parts; anti-fatigue treatment for heavy load components |
| Large Size | S660, S780, S930 | 2.0~3.0mm | Heavy shot peening strengthening for large crankshafts, blades and heavy forgings; improve fatigue life of components |
Steel Shot Sieve Analysis
| mesh | mm | Steel Shot mm | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SS-2.5 | SS-2.0 | SS-1.7 | SS-1.4 | SS-1.2 | SS-1.0 | SS-0.8 | SS-0.6 | SS-0.5 | SS-0.3 | SS-0.2 | ||
| 7 | 2.8 | all pass | ||||||||||
| 8 | 2.36 | all pass | ||||||||||
| 10 | 2 | 85%min | all pass | all pass | ||||||||
| 12 | 1.7 | 97%min | 85%min | 5%max | all pass | |||||||
| 14 | 1.4 | 97%min | 85%min | 5%max | all pass | |||||||
| 16 | 1.18 | 97%min | 85%min | 5%max | all pass | |||||||
| 18 | 1 | 96%min | 85%min | 5%max | all pass | |||||||
| 20 | 0.85 | 96%min | 85%min | 10%max | all pass | |||||||
| 25 | 0.71 | 96%min | 85%min | 10%max | all pass | |||||||
| 30 | 0.6 | 96%min | 85%min | 10%max | ||||||||
| 35 | 0.5 | 97%min | 85%min | 10%max | ||||||||
| 40 | 0.425 | 97%min | all pass | |||||||||
| 45 | 0.355 | 80%min | 10%max | |||||||||
| 50 | 0.3 | 90%min | ||||||||||
| 80 | 0.18 | 80%min | ||||||||||
| 120 | 0.125 | 90%min | ||||||||||
| 200 | 0.075 | |||||||||||
| 325 | 0.045 | |||||||||||
| SAE J444 | S-780 | S-660 | S-550 | S-460 | S-390 | S-330 | S-280 | S-230 | S-170 | S-110 | S-70 | |
Our cast steel shot is specified to SAE J827, which fixes chemistry and hardness for high-carbon cast-steel shot and links each S-size to its nominal diameter, so a S230 order means the same thing here as it does on your drawing.
