Steel cut wire shotAbrasive Media for Shot Blasting & Shot Peening

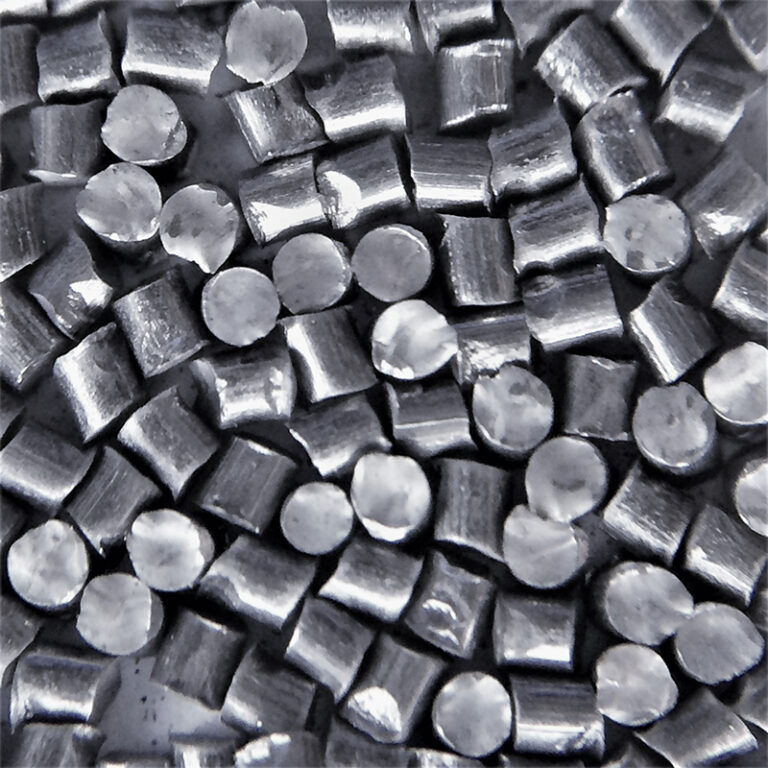

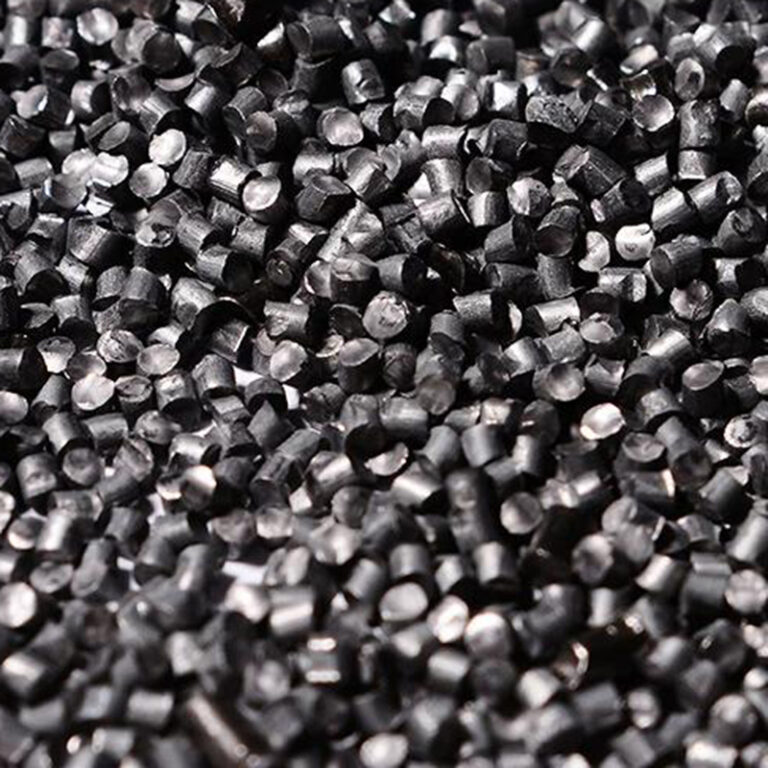

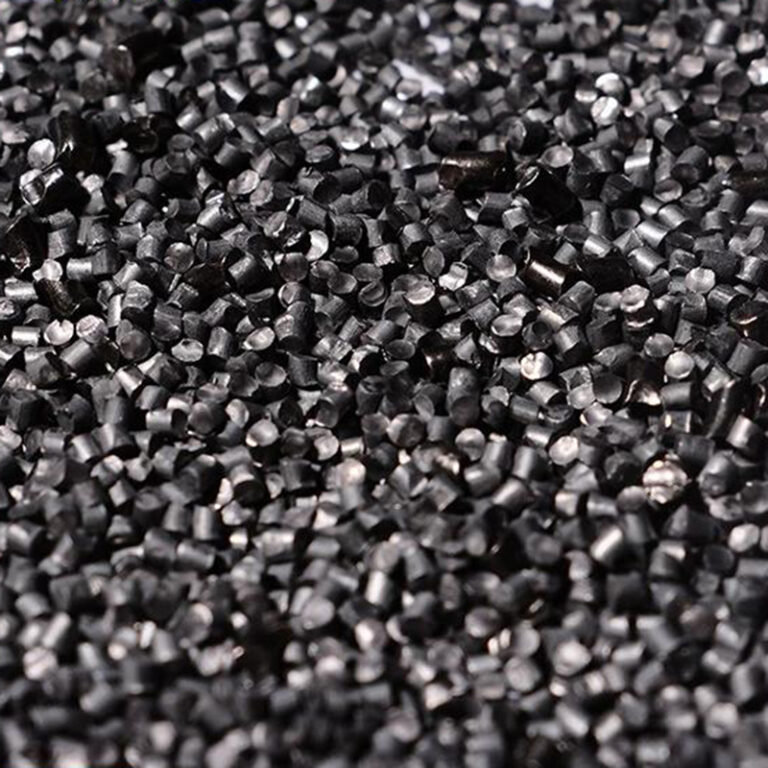

Description: Steel Cut Wire Shot is metallic blasting media, produced by cutting steel wire (high carbon or low carbon grade) into short cylindrical segments, followed by chamfering and heat treatment. It features dense internal structure without porosity or shrinkage cavity, adjustable hardness, low breakage rate and long service life. High carbon cut wire shot: widely used for shot blasting cleaning, descaling and shot peening strengthening. Low carbon cut wire shot: ultra-high toughness, mainly for fatigue shot peening, less cutting effect on workpiece surface. Available size range: 0.3 mm ~ 3.0 mm. To know more abrasives.
Note: Ferrous material, easy to rust under humid conditions. Not suitable for wet grinding in sand mills. Compliant with GB/T18838.4 & SAE J827. Custom wire grade, hardness and sizes available.
- Package:
- 1000 kg, Super Bag or Sack
- 25 kg (55 lbs), Paper Bag or Woven Polypropylene Bag

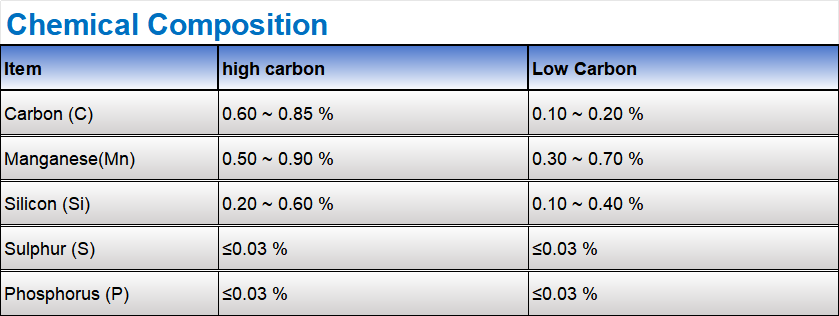

Chemical Composition
| Item | High Carbon | Low Carbon |
|---|---|---|
| Carbon (C) | 0.60 ~ 0.85 % | 0.10 ~ 0.20 % |
| Manganese (Mn) | 0.50 ~ 0.90 % | 0.30 ~ 0.70 % |
| Silicon (Si) | 0.20 ~ 0.60 % | 0.10 ~ 0.40 % |
| Sulphur (S) | ≤0.03 % | ≤0.03 % |
| Phosphorus (P) | ≤0.03 % | ≤0.03 % |

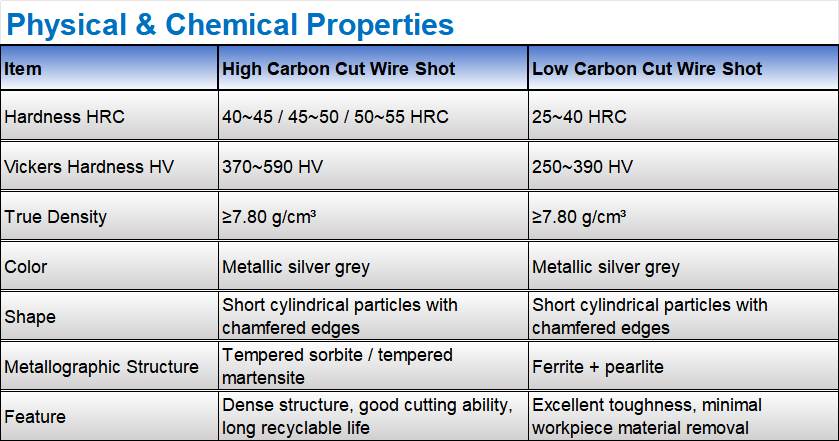

Physical & Chemical Properties
| Item | High Carbon Cut Wire Shot | Low Carbon Cut Wire Shot |
|---|---|---|
| Hardness HRC | 40~45 / 45~50 / 50~55 HRC | 25~40 HRC |
| Vickers Hardness HV | 370~590 HV | 250~390 HV |
| True Density | ≥7.80 g/cm³ | ≥7.80 g/cm³ |
| Color | Metallic silver grey | Metallic silver grey |
| Shape | Short cylindrical particles with chamfered edges | Short cylindrical particles with chamfered edges |
| Metallographic Structure | Tempered sorbite / tempered martensite | Ferrite + pearlite |
| Feature | Dense structure, good cutting ability, long recyclable life | Excellent toughness, minimal workpiece material removal |

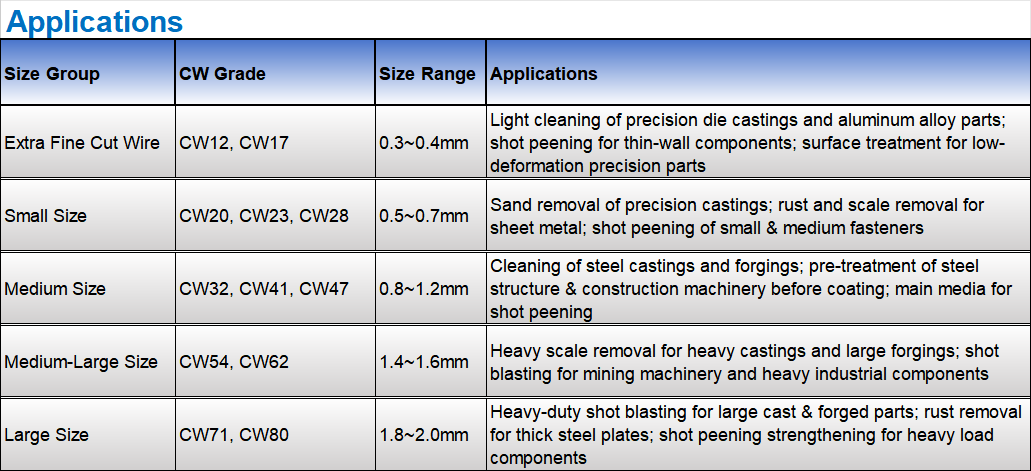

Applications
| Size Group | CW Grade | Size Range | Applications |
|---|---|---|---|
| Extra Fine Cut Wire | CW12, CW17 | 0.3~0.4mm | Light cleaning of precision die castings and aluminum alloy parts; shot peening for thin-wall components; surface treatment for low-deformation precision parts |
| Small Size | CW20, CW23, CW28 | 0.5~0.7mm | Sand removal of precision castings; rust and scale removal for sheet metal; shot peening of small & medium fasteners |
| Medium Size | CW32, CW41, CW47 | 0.8~1.2mm | Cleaning of steel castings and forgings; pre-treatment of steel structure & construction machinery before coating; main media for shot peening |
| Medium-Large Size | CW54, CW62 | 1.4~1.6mm | Heavy scale removal for heavy castings and large forgings; shot blasting for mining machinery and heavy industrial components |
| Large Size | CW71, CW80 | 1.8~2.0mm | Heavy-duty shot blasting for large cast & forged parts; rust removal for thick steel plates; shot peening strengthening for heavy load components |

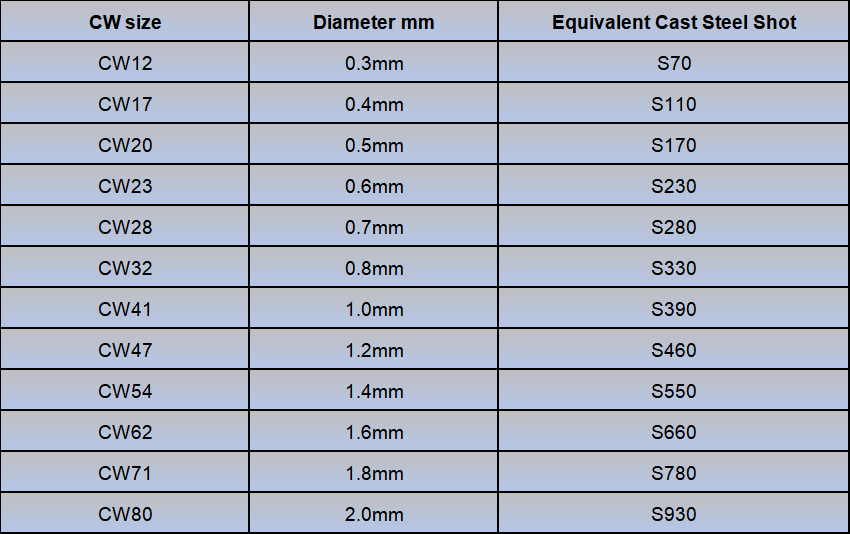

CW Size Conversion Table
| CW size | Diameter mm | Equivalent Cast Steel Shot |
|---|---|---|
| CW12 | 0.3mm | S70 |
| CW17 | 0.4mm | S110 |
| CW20 | 0.5mm | S170 |
| CW23 | 0.6mm | S230 |
| CW28 | 0.7mm | S280 |
| CW32 | 0.8mm | S330 |
| CW41 | 1.0mm | S390 |
| CW47 | 1.2mm | S460 |
| CW54 | 1.4mm | S550 |
| CW62 | 1.6mm | S660 |
| CW71 | 1.8mm | S780 |
| CW80 | 2.0mm | S930 |
