Yttria Stabilized Zirconia Ceramic Beads 95 Zirconia for Sand Mill

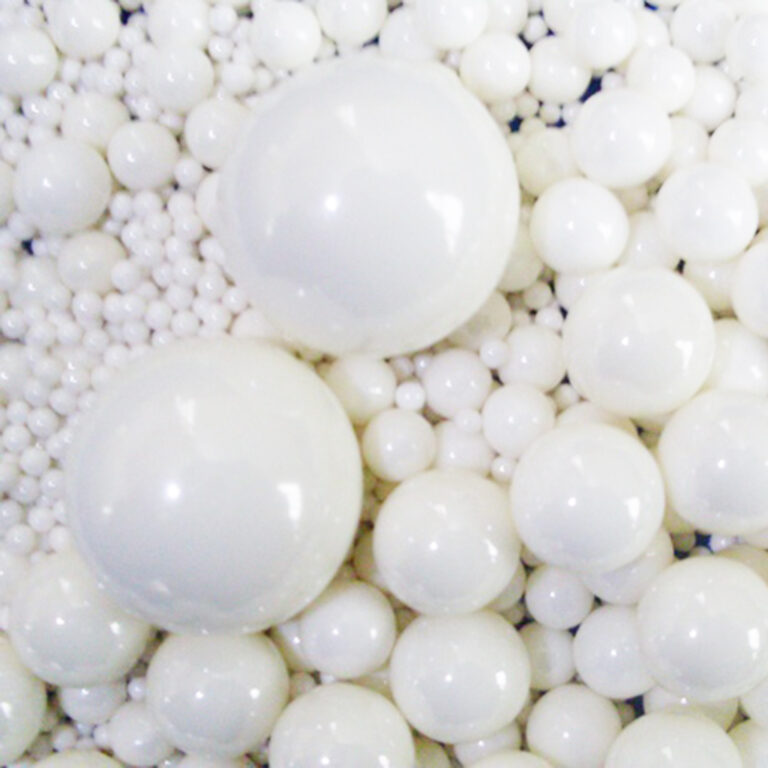

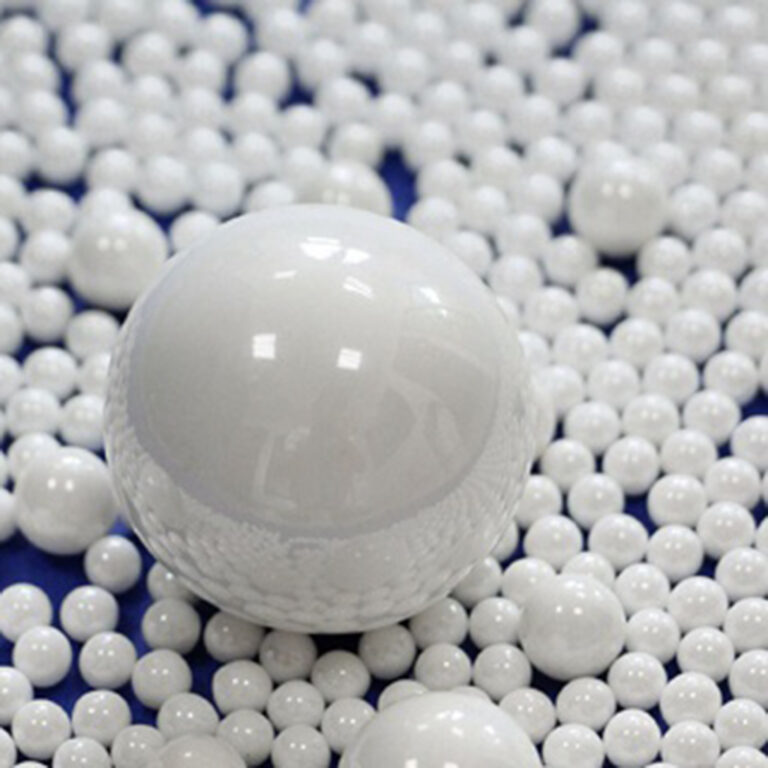

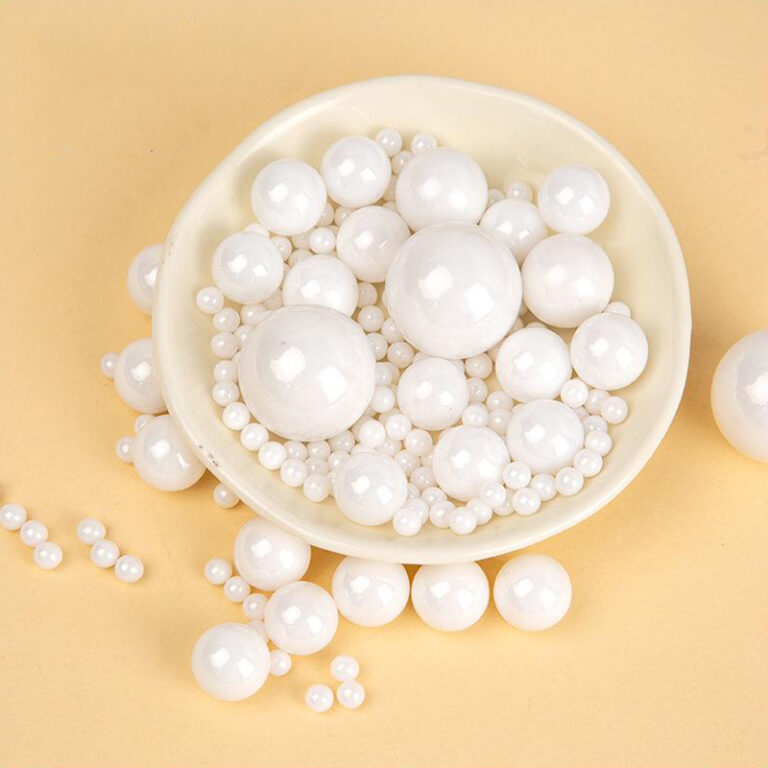

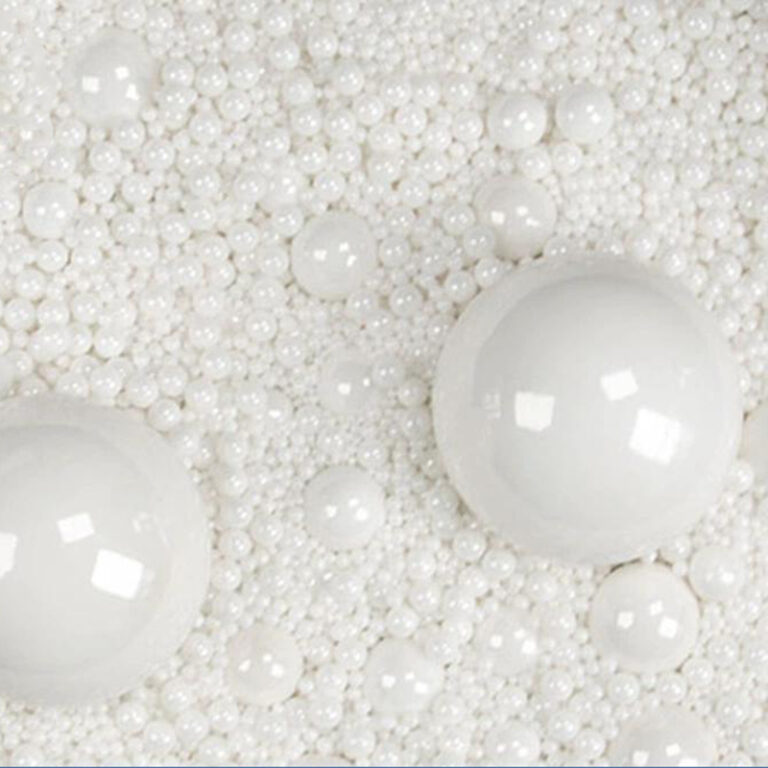

Description: 95 yttria stabilized zirconia ceramic beads (95YSZ) are high-performance ceramic grinding media, manufactured by wet granulation and high-temperature sintering. Stabilized by yttrium oxide, the beads feature high density, high toughness, ultra-low wear rate and excellent sphericity. They have superior mechanical strength and chemical inertness. Mainly applied for nano & submicron wet grinding and dispersion of high-value, high-viscosity materials. It minimizes slurry contamination. To know more abrasives.
Note: Higher density and service life than zirconium silicate beads (65Zr). Ideal for nano-grade grinding. Not commonly used for shot peening. Custom sizes available.
-
-
Package:
- 1000 kg, Super Bag or Sack
- 25 kg (55 lbs), Paper Bag or Woven Polypropylene Bag or Drum

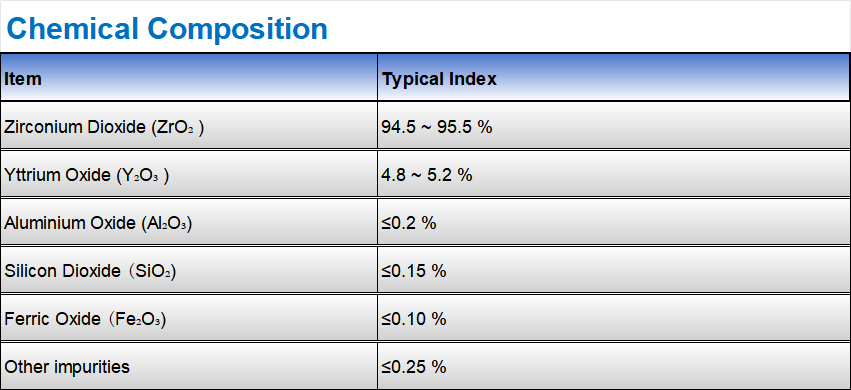

Chemical Composition
| Item | Typical Index |
|---|---|
| Zirconium Dioxide (ZrO₂) | 94.5 ~ 95.5 % |
| Yttrium Oxide (Y₂O₃) | 4.8 ~ 5.2 % |
| Aluminium Oxide (Al₂O₃) | ≤0.2 % |
| Silicon Dioxide (SiO₂) | ≤0.15 % |
| Ferric Oxide (Fe₂O₃) | ≤0.10 % |
| Other impurities | ≤0.25 % |

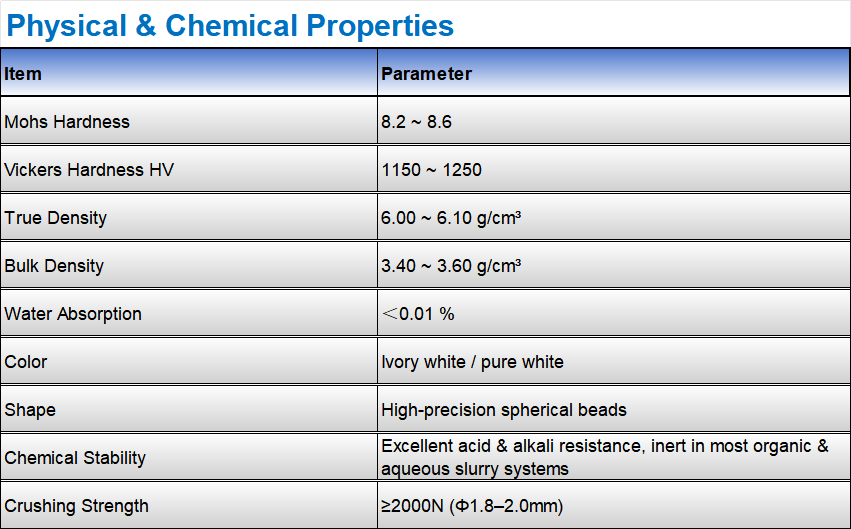

Physical & Chemical Properties
| Item | Parameter |
|---|---|
| Mohs Hardness | 8.2 ~ 8.6 |
| Vickers Hardness HV | 1150 ~ 1250 |
| True Density | 6.00 ~ 6.10 g/cm³ |
| Bulk Density | 3.40 ~ 3.60 g/cm³ |
| Water Absorption | <0.01 % |
| Color | Ivory white / pure white |
| Shape | High-precision spherical beads |
| Chemical Stability | Excellent acid & alkali resistance, inert in most organic & aqueous slurry systems |
| Crushing Strength | ≥2000N (Φ1.8–2.0mm) |

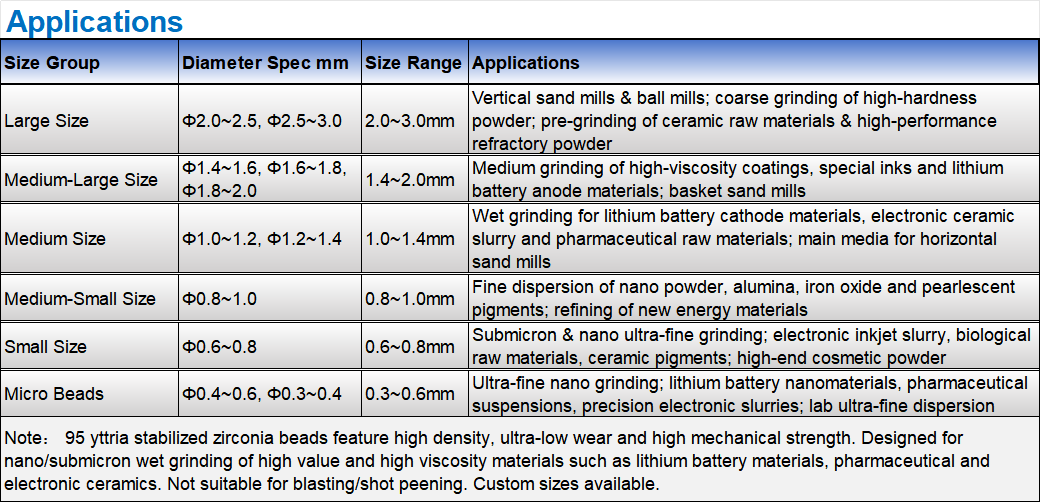

Applications

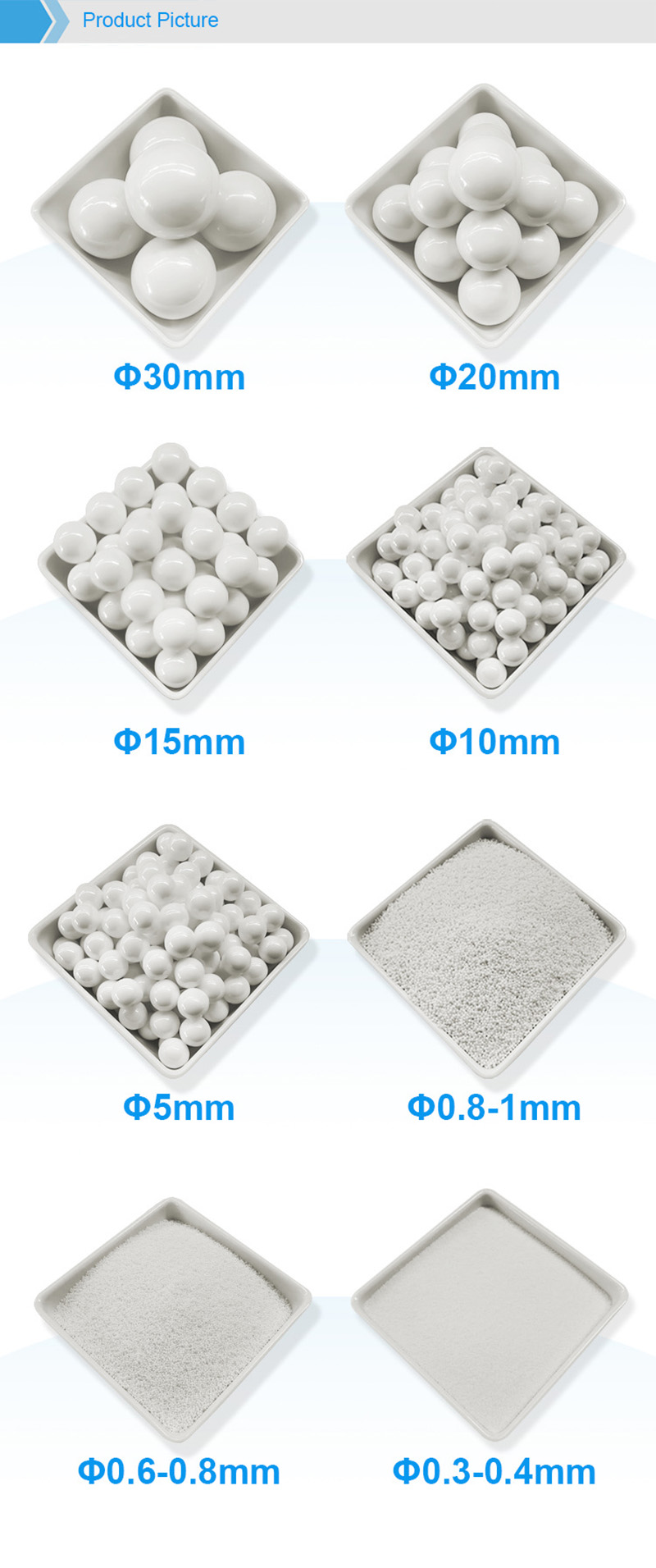

| Size Group | Diameter Spec mm | Size Range | Applications |
|---|---|---|---|
| Large Size | Φ2.0~2.5, Φ2.5~3.0 | 2.0~3.0mm | Vertical sand mills & ball mills; coarse grinding of high-hardness powder; pre-grinding of ceramic raw materials & high-performance refractory powder |
| Medium-Large Size | Φ1.4~1.6, Φ1.6~1.8, Φ1.8~2.0 | 1.4~2.0mm | Medium grinding of high-viscosity coatings, special inks and lithium battery anode materials; basket sand mills |
| Medium Size | Φ1.0~1.2, Φ1.2~1.4 | 1.0~1.4mm | Wet grinding for lithium battery cathode materials, electronic ceramic slurry and pharmaceutical raw materials; main media for horizontal sand mills |
| Medium-Small Size | Φ0.8~1.0 | 0.8~1.0mm | Fine dispersion of nano powder, alumina, iron oxide and pearlescent pigments; refining of new energy materials |
| Small Size | Φ0.6~0.8 | 0.6~0.8mm | Submicron & nano ultra-fine grinding; electronic inkjet slurry, biological raw materials, ceramic pigments; high-end cosmetic powder |
| Micro Beads | Φ0.4~0.6, Φ0.3~0.4 | 0.3~0.6mm | Ultra-fine nano grinding; lithium battery nanomaterials, pharmaceutical suspensions, precision electronic slurries; lab ultra-fine dispersion |
Hardness values for our zirconia and ZTA beads are measured as Vickers indentation hardness to ASTM C1327, the test method for advanced ceramics, and reported with the test load so they can be compared with your own incoming inspection data.
