ZTA ceramic balls | Zirconia Toughened Alumina Grinding Balls
Description: Zirconia-Alumina Composite Balls (ZTA ceramic balls) are high-performance composite ceramic grinding media. Made of alumina matrix doped with stabilized zirconia powder, formed by isostatic pressing and high-temperature sintering. Zirconia phase realizes phase transformation toughening, greatly improving fracture toughness and impact resistance. It combines the high hardness & thermal stability of alumina and the high toughness of zirconia. Medium density, low wear rate and high cost performance. Widely used in wet/dry grinding of hard minerals, coatings, inks and ceramic raw materials. Fine beads for sand mills; large balls for ball mills and vibratory grinding. Available sizes: 0.4–5mm, Φ5mm, Φ6mm, Φ8mm, Φ10mm, Φ15mm. To know more abrasives.
Note: White color, low contamination for light-colored slurries. Better toughness than pure sintered alumina balls, lower cost than zirconia beads. Custom sizes available.
-
-
Package:
- 1000 kg, Super Bag or Sack
- 25 kg (55 lbs), Paper Bag or Woven Polypropylene Bag or Drum

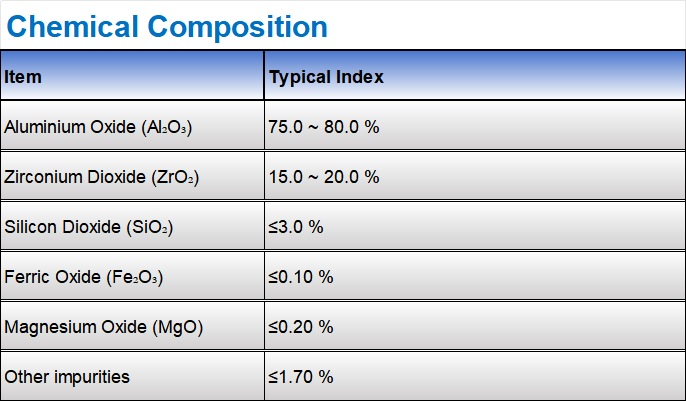

Chemical Composition
| Item | Typical Index |
|---|---|
| Aluminium Oxide (Al₂O₃) | 75.0 ~ 80.0 % |
| Zirconium Dioxide (ZrO₂) | 15.0 ~ 20.0 % |
| Silicon Dioxide (SiO₂) | ≤3.0 % |
| Ferric Oxide (Fe₂O₃) | ≤0.10 % |
| Magnesium Oxide (MgO) | ≤0.20 % |
| Other impurities | ≤1.70 % |

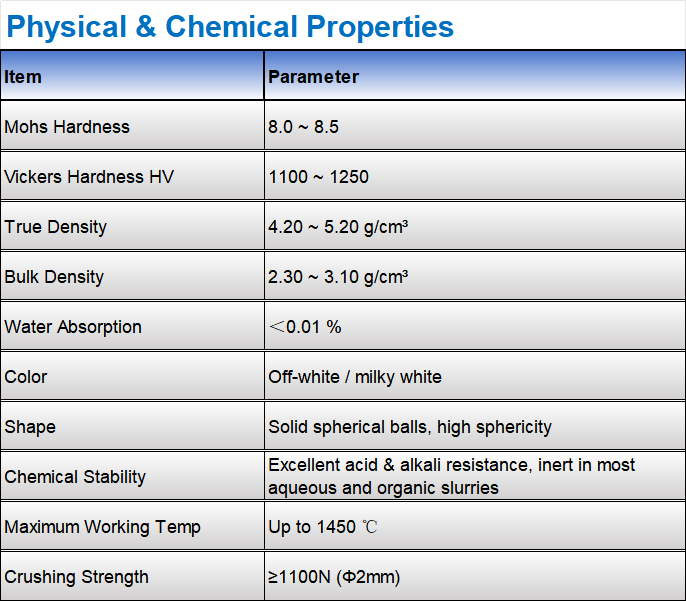

Physical & Chemical Properties
| Item | Parameter |
|---|---|
| Mohs Hardness | 8.0 ~ 8.5 |
| Vickers Hardness HV | 1100 ~ 1250 |
| True Density | 4.20 ~ 5.20 g/cm³ |
| Bulk Density | 2.30 ~ 3.10 g/cm³ |
| Water Absorption | < 0.01 % |
| Color | Off-white / milky white |
| Shape | Solid spherical balls, high sphericity |
| Chemical Stability | Excellent acid & alkali resistance, inert in most aqueous and organic slurries |
| Maximum Working Temp | Up to 1450 ℃ |
| Crushing Strength | ≥1100N (Φ2mm) |

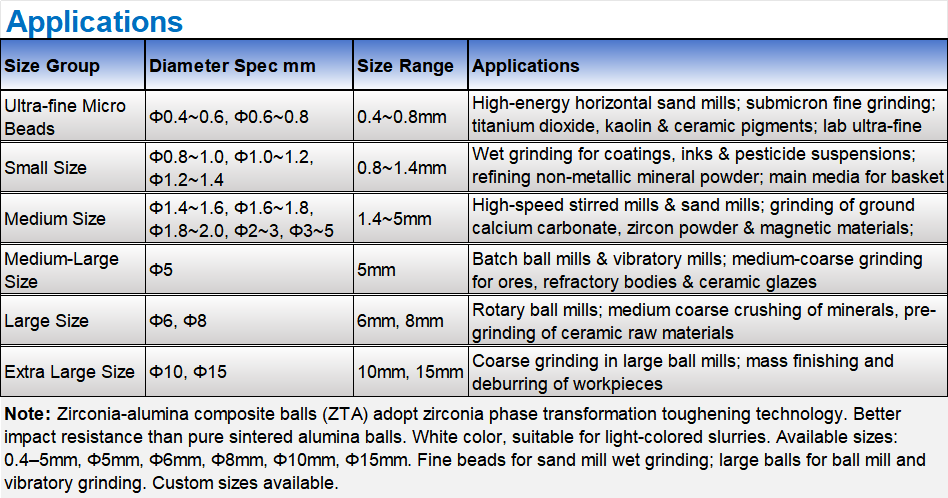

Applications
| Size Group | Diameter Spec mm | Size Range | Applications |
|---|---|---|---|
| Ultra-fine Micro Beads | Φ0.4~0.6, Φ0.6~0.8 | 0.4~0.8mm | High-energy horizontal sand mills; submicron fine grinding: titanium dioxide, kaolin & ceramic pigments; lab ultra-fine |
| Small Size | Φ0.8~1.0, Φ1.0~1.2, Φ1.2~1.4 | 0.8~1.4mm | Wet grinding for coatings, inks & pesticide suspensions; refining non-metallic mineral powder; main media for basket |
| Medium Size | Φ1.4~1.6, Φ1.6~1.8, Φ1.8~2.0, Φ2~3, Φ3~5 | 1.4~5mm | High-speed stirred mills & sand mills; grinding of ground calcium carbonate, zircon powder & magnetic materials; |
| Medium-Large Size | Φ5 | 5mm | Batch ball mills & vibratory mills; medium-coarse grinding for ores, refractory bodies & ceramic glazes |
| Large Size | Φ6, Φ8 | 6mm, 8mm | Rotary ball mills; medium coarse crushing of minerals, pre-grinding of ceramic raw materials |
| Extra Large Size | Φ10, Φ15 | 10mm, 15mm | Coarse grinding in large ball mills; mass finishing and deburring of workpieces |
Hardness values for our zirconia and ZTA beads are measured as Vickers indentation hardness to ASTM C1327, the test method for advanced ceramics, and reported with the test load so they can be compared with your own incoming inspection data.
